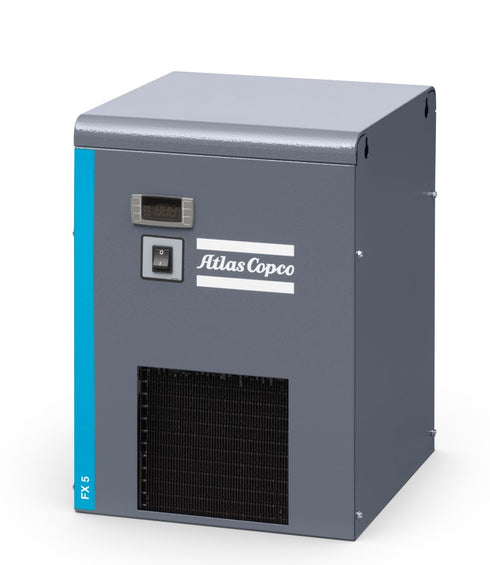

- FX 15 Refrigerant Dryer
The FX 5-300 series is available in 16 sizes ranging from 6-300 l/s/15 to 636 cfm with pressure dew points as low as +3°C/+37.4°F. Equipped with a electronic no-loss drain with safety function and controller with dew point display.
With easy installation and minumum maintenance the FX 5-300 will out perform. Some key features include:
- Refridgerant separator - Eliminates chance of moisture entering the compressed air system.
- Hot gas by-pass - Ensures stable pressure dew point and eliminates the possibility of condensate freezing.
- Digital Display - Provides peace of mind through precise monitoring of pressure dew point.
- Single Electrical Connection - Allows for plug-and-play installation
- Water Separator - Offers high efficiency for better pressure dew point.
- Easy access to key components - For straightforward servicing.
- Low-noise rotary compressor with integrated liquid separator - Lasts longer thanks to limited vibrations, minimal moving parts, and reduced risk of leakage.
Atlas Copco service solutions keep your compressed air system up and running efficiently and reliably.
Discover the maintenance solution that best fits your needs.
|CFM||PSI||PSIG||NPT||Refridgerant||Weight LB||Dimensions "|
|FX 5||13||2.18||232||3/4"||R513A||42||20 X 14 X 18|
|FX 10||21||3.63||232||3/4"||R513A||42||20 X 14 X 18|
|FX 15||30||3.63||232||3/4"||R513A||44||20 X 14 X 18|
|FX 20||42||3.63||232||3/4"||R513A||55||20 X 14 X 18|
|FX 30||64||4.35||232||3/4"||R513A||60||20 X 14 X 18|
|FX 40||83||2.03||203||1"||R513A||112||20 X 15 X 30|
|FX 50||106||2.90||203||1"||R513A||112||20 X 15 X 30|
|FX 60||127||2.61||203||1 1/2"||R410A||137||22 X 18 X 31|
|FX 70||144||2.61||203||1 1/2"||R410A||132||22 x 18 X 31|
|FX 90||184||3.63||203||1 1/2"||R410A||137||22 X 18X 31|
|FX 110||229||2.90||203||1 1/2"||R410A||181||22 X 23 X 36|
|FX 130||271||3.77||203||1 1/2"||R410A||181||22 X 23 X 36|
|FX 170||354||2.32||203||2"||R410A||320||41 X 32 X 38|
|FX 200||424||3.34||203||2"||R410A||348||41 X 32 X 38|
|FX 250||530||2.61||203||2 1/2"||R410A||364||41 X 32 X 38|
|FX 300||636||2.61||203||2 1/2"||R410A||362||41 X 32 X 38|
- Transformer 575V --> 460V
Stationary oil-injected rotary screw compressors (G,GX, GA, GA+ including VSD) up to 110kW
- 2 years from start-up for Electric Main Drive (motor) and Variable speed Drive (VSD)
- 12 months from start-up or 18 months from shipment, whichever comes first for entire unit (bumper to bumper)
Extended Warranty: 5 years from start-up for Screw Element
Other compressor types and sizes, vacuum pumps, gas generators, dryers
Standard Warranty: 12 months from start-up or 18 months from shipment, whichever comes first
Parts and accessories
Standard Warranty: 3 months from purchase
