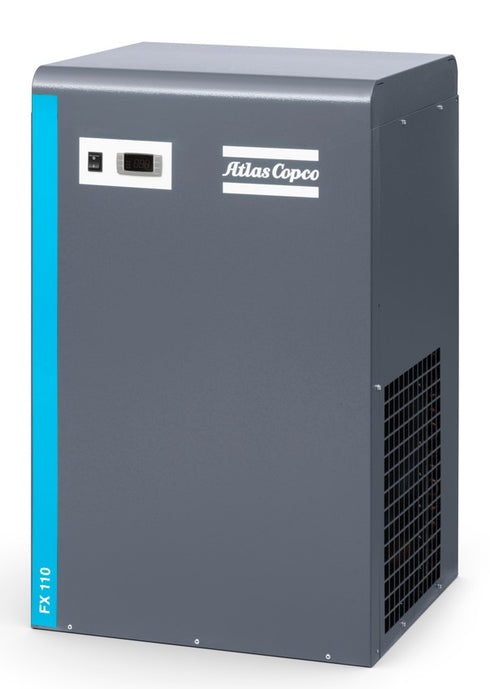

FX 110 Refrigerant Dryer

FX 110 Refrigerant Dryer

PSI Compressors, A Division of Atlas Copco Canada Inc.

  • Starting From $5,265.60
    Unit price per
Shipping Included
SKU: 8102227798
Shipping calculated at checkout.

Only 1 left!

Description:

Quality Performance

The FX 5-300 series is available in 16 sizes ranging from 6-300 l/s/15 to 636 cfm with pressure dew points as low as +3°C/+37.4°F. Equipped with a electronic no-loss drain with safety function and controller with dew point display.

With easy installation and minumum maintenance the FX 5-300 will out perform. Some key features include:

  • Refridgerant separator - Eliminates chance of moisture entering the compressed air system.
  • Hot gas by-pass - Ensures stable pressure dew point and eliminates the possibility of condensate freezing.
  • Digital Display - Provides peace of mind through precise monitoring of pressure dew point.
  • Single Electrical Connection - Allows for plug-and-play installation
  • Water Separator - Offers high efficiency for better pressure dew point.
  • Easy access to key components - For straightforward servicing.
  • Low-noise rotary compressor with integrated liquid separator - Lasts longer thanks to limited vibrations, minimal moving parts, and reduced risk of leakage.

View Catalog

Specifications

CFM PSI PSIG NPT  Refridgerant Weight LB Dimensions "
FX 5 13 2.18 232 3/4" R513A 42  20 X 14 X 18
FX 10 21 3.63 232 3/4" R513A 42 20 X 14 X 18
FX 15 30 3.63 232 3/4" R513A 44 20 X 14 X 18
FX 20 42 3.63 232 3/4" R513A 55 20 X 14 X 18
FX 30 64 4.35 232 3/4" R513A 60 20 X 14 X 18
FX 40  83 2.03 203 1" R513A 112 20 X 15 X 30
FX 50 106 2.90 203 1" R513A 112 20 X 15 X 30
FX 60  127 2.61 203 1 1/2" R410A 137 22 X 18 X 31
FX 70 144 2.61 203 1 1/2" R410A 132 22 x 18 X 31
FX 90  184 3.63 203 1 1/2" R410A 137 22 X 18X 31
FX 110 229 2.90 203 1 1/2" R410A 181 22 X 23 X 36
FX 130 271 3.77 203 1 1/2" R410A 181 22 X 23 X 36
FX 170 354 2.32 203 2" R410A 320 41 X 32 X 38
FX 200 424 3.34 203 2" R410A 348 41 X 32 X 38
FX 250 530 2.61 203 2 1/2" R410A 364 41 X 32 X 38
FX 300 636 2.61 203 2 1/2" R410A 362 41 X 32 X 38


Optional Equipment:

  • Transformer 575V --> 460V
