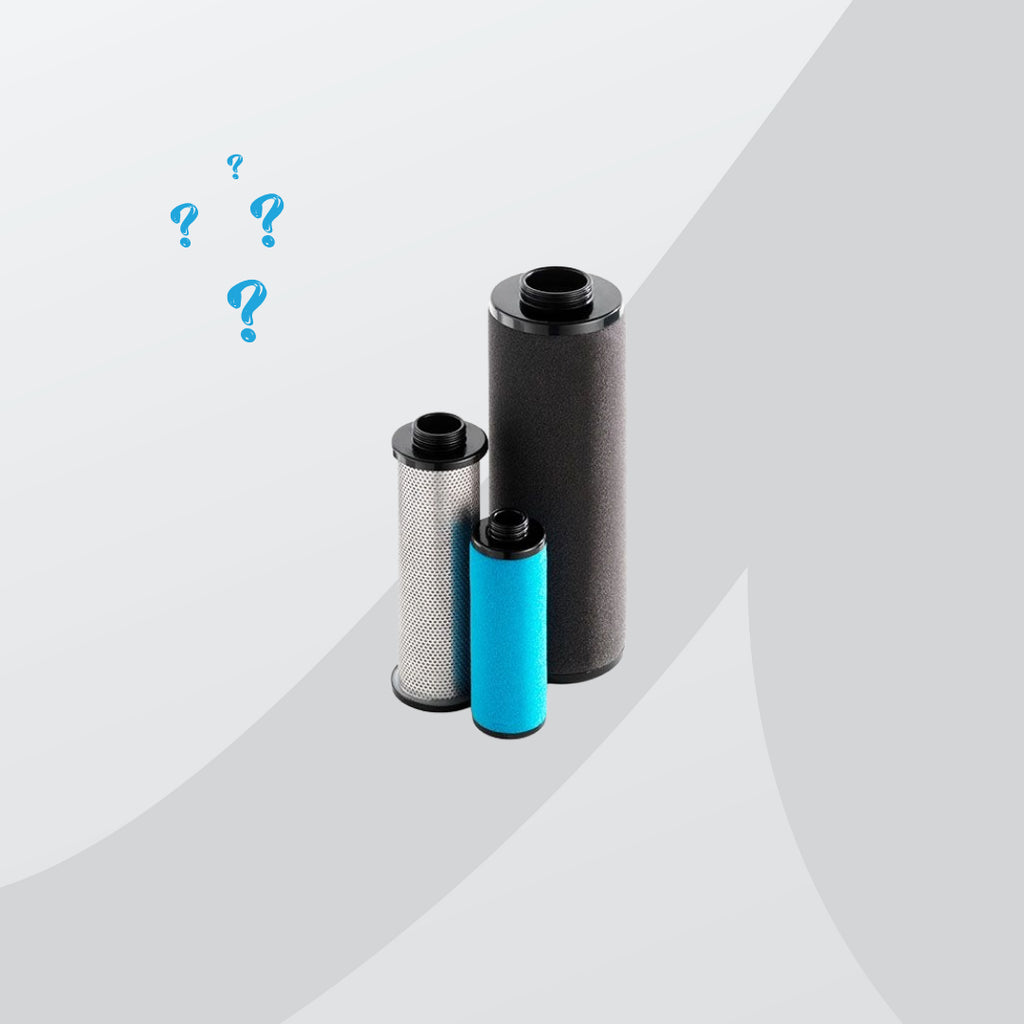

When Should You Replace Your Compressed Air Filter?

Compressed air filters protect your equipment, maintain air quality and help control energy costs. Although a filter element may look clean, its performance naturally declines over time.

Replace filter elements every 12 months

As a general rule, compressed air filter elements should be replaced at least once every 12 months, regardless of operating hours. Pressure fluctuations, moisture, contaminants and temperature changes gradually weaken the filter media.

More frequent replacement may be required in dusty or demanding environments. Your replacement schedule should also reflect the air purity class required for your application.

Do not rely on the pressure gauge alone

A differential pressure indicator can help identify a blocked filter element, but it should not be used as the main replacement trigger. It does not measure compressed air quality or detect damaged filter media.

A ruptured element may even produce a normal pressure reading because air can flow through the damaged area with little resistance. Follow the recommended service interval instead of waiting for the indicator to change.

Signs your compressed air filter may need replacing

• The element has reached its 12-month service interval.
• Oil or water appears in downstream equipment or piping.
• System pressure drops and cannot be maintained.
• Compressed air quality no longer meets process requirements.
• Odours return after an activated carbon filter.
• The system experienced a pressure spike or rapid repressurization.

Why timely replacement matters

A worn, blocked or damaged filter can allow contaminants to enter the compressed air system. This may lead to:

• Equipment damage and production downtime
• Product contamination or rework
• Corrosion in piping and air receivers
• Increased maintenance costs
• Higher energy consumption caused by pressure drop

How to replace a compressed air filter element

Safety warning: Always isolate the filter and fully depressurize the housing before opening it. Confirm that the housing reads zero pressure.

1. Isolate the filter and vent the housing completely.
2. Remove the filter bowl while supporting its weight.
3. Remove the old element and note its orientation.
4. Inspect the seals and replace the drain when required.
5. Install the correct replacement element.
6. Refit the bowl and slowly repressurize the system.
7. Record the replacement date in the maintenance log.

Never wash and reuse a filter element. Cleaning can damage the filtration media and will not reliably remove trapped contaminants.

Keep your compressed air system performing reliably

Replacing filter elements on schedule is a simple and cost-effective way to protect compressed air quality, reduce energy use and avoid unplanned disruptions. Always use an element that matches the filter housing and the purity requirements of your application.
